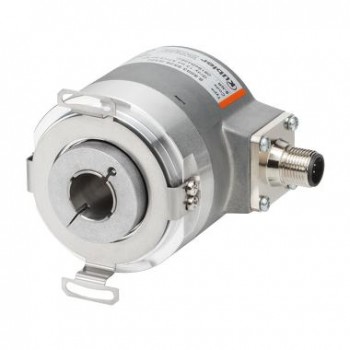

Энкодер абсолютный многооборотный Kuebler Sendix 5883

The absolute encoders Singleturn Sendix 5863 / 5883 with SSI or BiSS interface and optical sensor technology achieve a resolution of 17 bit Singleturn and 12 bit Multiturn. In this standard size of 58 mm, a through hollow shaft up to 14 mm and a blind hole shaft up to 15 mm are possible. These encoders are also available with an additional incremental track.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 58 mm
Shaft type	10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, blind hole 3/8 » hollow shaft, through 1/2 » hollow shaft, through
Flange type	Synchro flange / Servo flange Clamping flange Square flange Euro flange Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm
Working temperature	-40 °C … +90 °C
Protection level	IP65 IP67
Connection types	Radial cable Tangential cable M23 connector radial M12 connector radial
Max. rotational speed	9.000 min-1
Weight	450 g

teh
Ед	шт
Артикул	5883
dr
Колво	1
