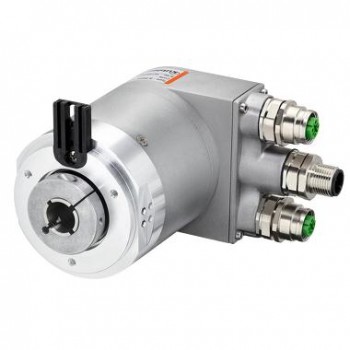

Энкодер абсолютный многооборотный Kuebler Sendix 5888

The absolute encoders Multiturn Sendix 5868 / 5888 with 2nd-generation EtherCAT interface and optical sensors can be used in all applications with EtherCAT technology. The data communication is based on CAN over EtherNet and is ideally suited for real-time applications. These encoders are available with shafts up to a maximum diameter of 10 mm or as blind hollow shafts up to 15 mm.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 58 mm
Shaft type	10 mm hollow shaft, blind hole 12 mm hollow shaft, blind hole 14 mm hollow shaft, blind hole 15 mm hollow shaft, blind hole 1/2 » hollow shaft, blind hole 3/8 » hollow shaft, blind hole
Flange type	Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm Ø 72.00 mm
Working temperature	-40 °C … +80 °C
Protection level	IP65 IP67
Connection types	M12 connector radial
Max. rotational speed	9.000 min-1
Weight	570 g

teh
Ед	шт
Артикул	5888
dr
Колво	1
