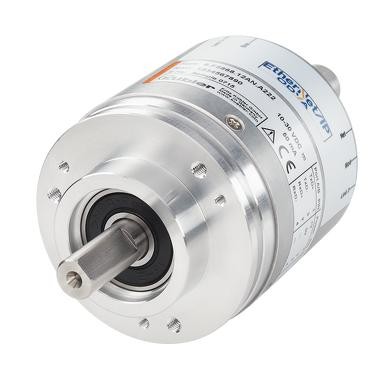

Энкодер абсолютный многооборотный Kuebler Sendix F5868

The absolute encoders Singleturn Sendix F5868 / F5888 with EtherNet/IP interface and a resolution of up to 16 bits are designed for time-critical applications. Thanks to their special features, due to the patented Intelligent Scan Technology™, they not only support the performance and availability of your plant, but also make a major contribution to saving time and money.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 58 mm
Shaft type	6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 » shaft, with flat surface 3/8 » shaft, with flat surface
Flange type	Synchro flange / Servo flange Clamping flange Square flange Ø 58.00 mm
Working temperature	-40 °C … +85 °C
Protection level	IP65
Connection types	M12 connector axial
Max. rotational speed	8.000 min-1
Weight	450 g

teh
Ед	шт
Артикул	F5868
dr
Колво	1
