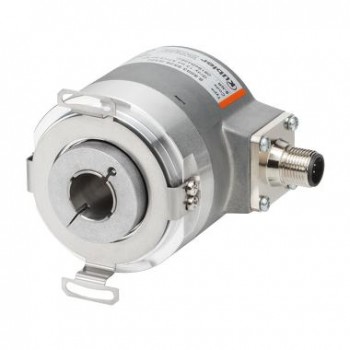

Энкодер абсолютный многооборотный Kuebler Sendix F5883

The absolute encoders Multiturn Sendix F5863 / F5883 with patented Intelligent Scan Technology™ and SSI or BiSS interface are particularly high-resolution optical encoders without gears with 100% magnetic insensitivity. 41 bit total resolution, through hollow shaft up to 15 mm and variants with additional SinCos or RS422 incremental track.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 58 mm
Shaft type	10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 3/8 » hollow shaft, through 1/2 » hollow shaft, through
Flange type	Ø 46.00 mm Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm
Working temperature	-40 °C … +85 °C
Protection level	IP65 IP67
Connection types	Radial cable Tangential cable M23 connector radial M12 connector radial
Max. rotational speed	9.000 min-1
Weight	450 g

teh
Ед	шт
Артикул	F5883
