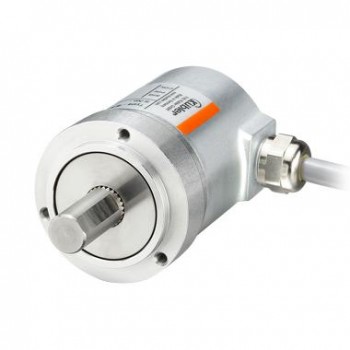

Энкодер абсолютный многооборотный Kuebler Sendix M3663R

The absolute encoder Multiturn Sendix M3663R with SSI interface and magnetic sensor technology is based on Energy Harvesting Technology and is equipped without gears and without battery. Special features include an extremely robust design, very high protection, and high bearing load. A stainless steel version is available for maximum robustness and seawater resistance. This encoder provides a superior and durable performance in the harshest environments.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 36 mm
Shaft type	6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 » shaft, with flat surface
Flange type	Ø 36.00 mm Ø 42.00 mm
Working temperature	-40 °C … +85 °C
Protection level	IP66 IP67 IP69k
Connection types	Radial cable M12 connector radial
Max. rotational speed	4.000 min-1
Weight	200 g

teh
Ед	шт
Артикул	M3663R
dr
Колво	1
