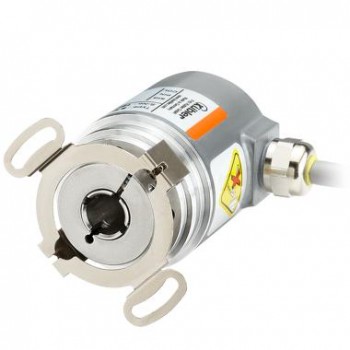

Энкодер абсолютный многооборотный Kuebler Sendix M3683

The absolute encoders Multiturn Sendix M3663 / M3683 with SSI interface and magnetic sensor technology are based on Energy Harvesting Technology and are equipped without gears and without battery. This makes them particularly robust, durable and cost-efficient. With their high IP67 protection, these encoders provide reliable operation in the harshest environments. Their compact design of only 36 mm allows easy installation in confined spaces.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 36 mm
Shaft type	6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 » hollow shaft, blind hole
Flange type	Ø 36.00 mm Ø 46.00 mm
Working temperature	-40 °C … +85 °C
Protection level	IP65 IP67
Connection types	Axial cable Radial cable M12 connector axial M12 connector radial
Max. rotational speed	6.000 min-1
Weight	200 g

teh
Ед	шт
Артикул	M3683
dr
Колво	1
