Инкрементальный энкодер Kuebler 3700

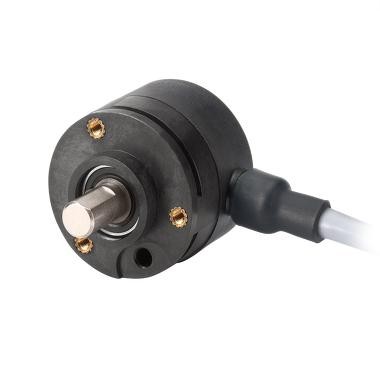

The incremental compact encoders 3700 / 3720 with optical sensors are available with a resolution of up to 1024 pulses per revolution. The carbon fiber reinforced plastic housing of these incremental encoders is nevertheless extremely robust and resistant. Due to their high IP protection, they are also suitable for outdoor use.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 37 mm
Shaft type	4 mm shaft, with flat surface 5 mm shaft, with flat surface 6 mm shaft, with flat surface 8 mm shaft, with flat surface 1/4 » shaft, with flat surface
Flange type	Synchro flange / Servo flange Clamping flange Ø 36.80 mm Ø 37.00 mm Ø 40.00 mm
Working temperature	-20 °C … +70 °C
Protection level	IP65 IP67
Connection types	Axial cable Radial cable
Max. rotational speed	6.000 min-1
Weight	100 g

teh
Ед	шт
Артикул	3700
dr
Колво	1
