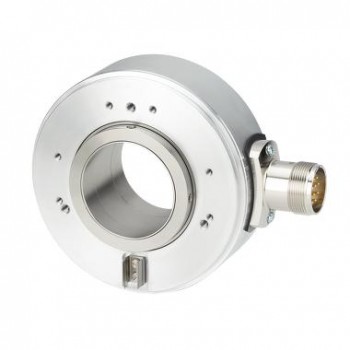

Инкрементальный энкодер Kuebler A020

The incremental encoder A020 with optical sensor technology is available with through hollow shaft up to a maximum diameter of 42 mm.
With an installation depth of only 43 mm, it is ideally suited for mounting on large shafts even in tight installation situations.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 100 mm
Shaft type	20 mm hollow shaft, through 24 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 30 mm hollow shaft, through 38 mm hollow shaft, through 40 mm hollow shaft, through 42 mm hollow shaft, through 1 » hollow shaft, through
Flange type	Ø 100.00 mm Ø 115.00 mm
Working temperature	-40 °C … +70 °C
Protection level	IP65
Connection types	Radial cable M23 connector radial M12 connector radial
Max. rotational speed	3.000 min-1
Weight	700 g

teh
Ед	шт
Артикул	A020
dr
Колво	1
