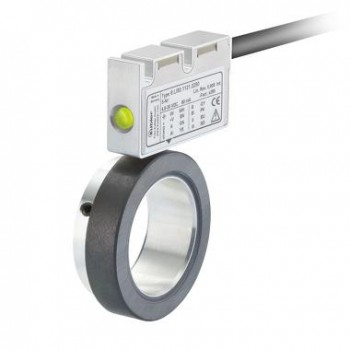

Инкрементальный энкодер Kuebler RLI50

The RLI50 bearingless encoder with reference signal, consisting of magnetic ring and sensor head, with its installation depth of only 16 mm is ideally suited for confined installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life. IP68 / IP69k protection, special encapsulation technology, and tested resistance to cyclic humidity and heat provide maximum reliability even in unprotected outdoor use. This bearingless encoder can be mounted on shafts up to max. 35 mm diameter.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Shaft type	6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 15 mm hollow shaft, through 20 mm hollow shaft, through 25 mm hollow shaft, through 30 mm hollow shaft, through 35 mm hollow shaft, through 5/8 » hollow shaft, through 1 » hollow shaft, through
Working temperature	-20 °C … +80 °C
Protection level	IP67 IP68 IP69k
Connection types	Radial cable
Max. rotational speed	12.000 min-1
Weight	200 g

teh
Ед	шт
Артикул	RLI50
dr
Колво	1
