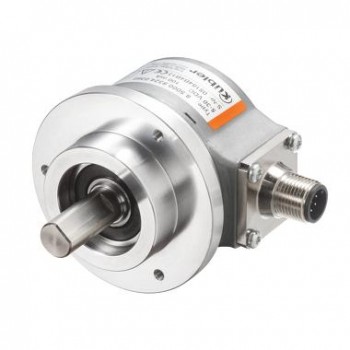

Инкрементальный энкодер Kuebler Sendix 5000
Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40°C to +85°C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options. Special highlight: The 24one delivery commitment: We manufacture your desired encoder in 24 hours. This free service affords you planning reliability and maximum system availability.
- Характеристики
- Характеристики
- Отзывы 0
| Dimension | Ø 50 mm |
| Shaft type | 6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 11 mm shaft, with flat surface 12 mm shaft, with flat surface 1/4 » shaft, with flat surface 3/8 » shaft, with flat surface |
| Flange type | Synchro flange / Servo flange Clamping flange Square flange Euro flange Ø 50.80 mm ❏ 52.30 mm Ø 58.00 mm Ø 63.50 mm ❏ 63,50 mm Ø 115.00 mm |
| Working temperature | -40 °C … +85 °C |
| Protection level | IP65 IP66 IP67 |
| Connection types | Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial MIL connector |
| Max. rotational speed | 12.000 min-1 |
| Weight | 400 g |
| teh | |
| Ед | шт |
| Артикул | 5000 |
| dr | |
| Колво | 1 |
