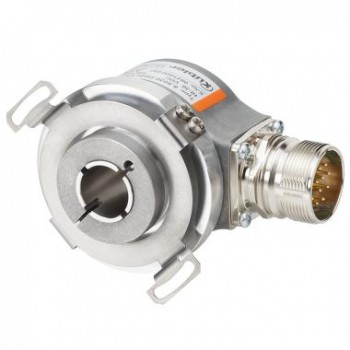

Инкрементальный энкодер Kuebler Sendix 5020

Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40°C to +85°C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options. Special highlight: The 24one delivery commitment: We manufacture your desired encoder in 24 hours. This free service affords you planning reliability and maximum system availability.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 50 mm
Shaft type	6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 1/4 » hollow shaft, through 3/8 » hollow shaft, through 1/2 » hollow shaft, through 5/8 » hollow shaft, through
Flange type	Spring element, long Stator coupling Torque brackets long Ø 50.80 mm Ø 57.20 mm Ø 63.00 mm Ø 65.00 mm
Working temperature	-40 °C … +85 °C
Protection level	IP65 IP66 IP67
Connection types	Axial cable Radial cable Tangential cable M23 connector radial M12 connector radial MIL connector
Max. rotational speed	12.000 min-1
Weight	400 g

teh
Ед	шт
Артикул	5020
dr
Колво	1
