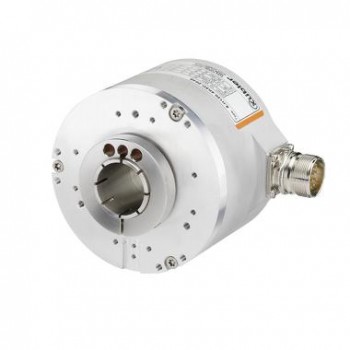

Инкрементальный энкодер Kuebler Sendix H120

The incremental encoder Sendix H120 is ideal for large motors and generators. It is highly accurate and extremely robust thanks to HD-Safety-Lock™ — the Heavy Duty hollow shaft design of the latest generation with strong bearing construction and integrated bearing insulation. The double-protected shaft, the wide temperature range and the high protection enable use even under the most adverse conditions. The particularly large hollow shaft up to 28 mm, the variety of mounting solutions and connection variants offer maximum flexibility during installation.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 100 mm
Shaft type	12 mm hollow shaft, blind hole 16 mm hollow shaft, through 20 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 1 » hollow shaft, through 16 mm insert shaft, cylindrical 17 mm insert shaft, tapered
Flange type	Ø 100.00 mm
Working temperature	-40 °C … +100 °C
Protection level	IP66 IP67
Connection types	Radial cable M23 connector radial M12 connector radial Terminal box
Max. rotational speed	6.000 min-1
Weight	1800 g

teh
Ед	шт
Артикул	H120
dr
Колво	1
