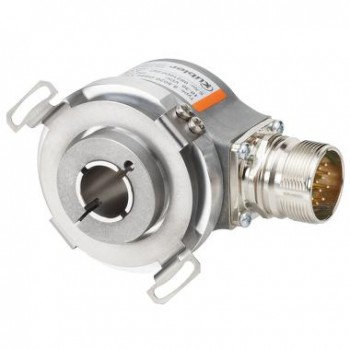

Инкрементальный энкодер Kuebler Sendix KIH50

The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.

Оставить заявку

Характеристики
Характеристики
Отзывы ⁰

Dimension	Ø 50 mm
Shaft type	8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through
Flange type	Ø 50.80 mm Ø 63.00 mm Ø 65.00 mm
Working temperature	-20 °C … +70 °C
Protection level	IP65
Connection types	Radial cable Tangential cable M23 connector radial M12 connector radial
Max. rotational speed	6.000 min-1
Weight	170 g
